The effects of SCARB2 and SELPLG gene polymorphisms on EV71 infection in hand, foot and mouth disease

Authors

  • Fengyuan Duan Department of Cell Biology and Medical Genetics, Kunming Medical University, Kunming, China; Kunming Kingmed Institute for Clinical Laboratory Co., Ltd., Kunming, China https://orcid.org/0000-0003-2399-8822
  • Zengqing Du Infectious Disease Department, Kunming Children's Hospital, Kunming, China
  • Yang Wang Clinical Laboratory, Yan'an Hospital of Kunming City, Kunming, China
  • Lan Luo Department of Cell Biology and Medical Genetics, Kunming Medical University, Kunming, China
  • Lijiang Du Infectious Disease Department, Kunming Children's Hospital, Kunming, China
  • Hong Jiang Department of Cell Biology and Medical Genetics, Kunming Medical University, Kunming, China
  • Yantuanjin Ma Department of Cell Biology and Medical Genetics, Kunming Medical University, Kunming, China
  • Yuling Yang Department of Cell Biology and Medical Genetics, Kunming Medical University, Kunming, China

DOI:

https://doi.org/10.17305/bb.2023.8948

Keywords:

Hand-foot-and-mouth disease, genetic polymorphism, EV71, SELPLG, SCARB2

Abstract

The same viral infection in different hosts may result in varying levels of clinical symptoms, which is related to the genetic background of the host itself. A total of 406 common cases and 452 severe cases of enterovirus 71 (EV71) infection in Yunnan Province were selected as the research subjects, and SNaPshot technology was used to detect genetic polymorphisms for 25 Tag single-nucleotide polymorphisms (TagSNPs) in the selectin P ligand (SELPLG) and scavenger receptor class B member 2 (SCARB2) genes. Our results demonstrate that SCARB2 polymorphisms (rs74719289, rs3733255 and rs17001551) are related to the severity of EV71 infection (A vs G: OR 0.330; 95% CI 0.115 - 0.947; T vs C: OR 0.336; 95% CI 0.118 - 0.958; and A vs G: OR 0.378; 95% CI 0.145 - 0.984). The SELPLG polymorphisms were not significantly different between common cases and severe cases. Therefore, we conclude that the SCARB2 gene has a protective effect on the course of hand, foot and mouth disease caused by EV71 infection and that SCARB2 gene mutations can reduce the severity of the disease.

Downloads

Download data is not yet available.

Author Biographies

Fengyuan Duan, Department of Cell Biology and Medical Genetics, Kunming Medical University, Kunming, China; Kunming Kingmed Institute for Clinical Laboratory Co., Ltd., Kunming, China

















Zengqing Du, Infectious Disease Department, Kunming Children's Hospital, Kunming, China









Yang Wang, Clinical Laboratory, Yan'an Hospital of Kunming City, Kunming, China









Lan Luo, Department of Cell Biology and Medical Genetics, Kunming Medical University, Kunming, China









Lijiang Du, Infectious Disease Department, Kunming Children's Hospital, Kunming, China









Hong Jiang, Department of Cell Biology and Medical Genetics, Kunming Medical University, Kunming, China









Yantuanjin Ma, Department of Cell Biology and Medical Genetics, Kunming Medical University, Kunming, China









Yuling Yang, Department of Cell Biology and Medical Genetics, Kunming Medical University, Kunming, China









The effects of SCARB2 and SELPLG gene polymorphisms on EV71 infection in hand, foot and mouth disease

Downloads

Additional Files

Published

2023-09-04

How to Cite

1.
Duan FY, Du Z-Q, Wang Y, Luo L, Du L-J, Jiang H, Ma yantuanjin, Yang Y-L. The effects of SCARB2 and SELPLG gene polymorphisms on EV71 infection in hand, foot and mouth disease. Biomol Biomed [Internet]. 2023Sep.4 [cited 2023Dec.4];23(5):815–824. Available from: https://www.bjbms.org/ojs/index.php/bjbms/article/view/8948

Issue

Vol. 23 No. 5 (2023)

Section

Molecular Biology

License

Copyright (c) 2023 Fengyuan Duan, Zengqing Du, Yang Wang, Lan Luo, Lijiang Du, Hong Jiang, Yantuanjin Ma, Yuling Yang

Creative Commons License

This work is licensed under a Creative Commons Attribution 4.0 International License.

Introduction

Hand-foot-and-mouth disease (HFMD) is an infectious disease caused by a variety of enteroviruses, mainly spread through the fecal–oral route and inhalable respiratory droplets [1]. The patients are usually less than five years old. Most patients have symptoms, such as fever, recurrent aphthous ulcer, and skin rashes on the hands, feet, and buttocks [2]. A few patients have experienced encephalitis, flaccid paralysis, and even death. The HFMD epidemic has broken out in the Asia–Pacific region, posing a serious public health threat. Furthermore, the pathogenic mechanism of HFMD and the biological characteristics of the virus have not been fully elucidated.

HFMD is mainly caused by enterovirus A71 (EV71) [3, 4], and EV71 infection might cause neurological, psychiatric complications, and even death [5]. In clinical practice, the symptoms of HFMD patients are usually mild and self-limiting, but a severe EV71 infection can lead to a diverse array of neurological diseases. Therefore, the same viral infection in different hosts may result in variations in clinical symptoms, which is not only related to the virulence of EV71 but also dependent on the immune responses of different hosts.

EV71 infection is affected by cell surface receptors, including the human scavenger receptor class B member 2 (SCARB2), and attachment receptors, such are P-selectin glycoprotein ligand-1 (PSGL-1). SCARB2 is encoded by the SCARB2 gene, and it was mainly observed in lung pneumocytes, hepatocytes, renal tubular epithelium, splenic germinal centers, intestinal epithelium, and most central nervous system (CNS) neurons [6, 7]. It can shuttle between endosomes, lysosomes, and plasma membranes using membrane flow [8]. SCARB2 plays a crucial role in EV71 infection by mediating viral attachment, internalization, and uncoating through the clathrin-mediated endocytic pathway [9, 10]. Attachment receptors are thought to support EV71 attachment to the cell surface and enhance EV71 infection by increasing a probability of encountering a true receptor. These molecules include PSGL-1, heparan sulfate, annexin II, sialic acid, nucleolin, and vimentin [11]. PSGL-1 is encoded by the SELPLG gene. As an adhesion molecule involved in immune cell trafficking, it is recognized as a regulator of immune responses [12]. EV71 strains are classified into two distinct phenotypes according to PSGL-1-binding capability: PSGL-1-binding (PB) and PSGL-1-nonbinding (non-PB) strains [13]. Studies in cynomolgus monkeys showed that non-PB strains were more virulent than PB strains [11], However, in some molecular epidemiologic studies, VP1-145G/Q viruses (PB strains) were isolated more frequently from severely affected patients than from mildly affected patients [14–17], which seems to indicate that the PB strains are more virulent in humans. These apparently contradictory findings in humans and animal models are yet to be studied.

Several gene polymorphisms in cytokines and chemokines, such as interferon gamma (IFN-γ), interleukin 8 (IL-8), interleukin 10 (IL-10), interleukin 17F (IL-17F), C–C motif chemokine ligand 2, and C–X–C motif chemokine 10, have been reported to be associated with susceptibility to EV71 infection [18]. This suggests that host genetic factors can play an important role in EV71 infection. The different genetic polymorphisms of SELPLG and SCARB2 in different individuals may lead to differences in the expression of PSGL-1 and SCARB2 proteins, which may directly affect the efficiency of virus entry into cells and the subsequent emergence and strength of cellular immune responses, ultimately leading to differences in the degree of patient infection.

In this study, a case-control association study was performed and HFMD patients infected with the same virus strain (C4 EV71) were selected as the study subjects to exclude the impact of the different virus strains. We investigated the effects of SELPLG and SCARB2 gene polymorphisms in EV71 infection and looked for susceptibility to EV71 infection. This study could provide a valuable research basis for exploring the pathogenic mechanism of HFMD and factors affecting the severity of the disease.

Materials and methods

Cases and diagnostic criteria

In this study, HFMD patients infected with C4 EV71 virus who were admitted to hospital between 2017 and 2021 were the research subjects, including 452 severe cases (276 males and 176 females) and 406 common cases (245 males and 161 females). Diagnostic criteria for HFMD were determined according to the Guidelines for the Diagnosis and Treatment of Hand Foot and Mouth Disease (2018 version), issued by the National Health Commission of the People’s Republic of China and the Textbook of Pediatrics. Common cases involved patients who had skin rashes on the hands, feet, mouth, and buttocks, which may be accompanied by cough, runny nose, loss of appetite, etc. Severe cases included patients who had CNS involvement, listlessness, lethargy, weak sucking, hyperarousal, headache, vomiting, fidgeting, limb shaking, myasthenia, stiff neck, etc. Critical cases included patients who demonstrated shortness of breath, cyanosis of the lips, pink foamy sputum or bloody fluid, decreased blood pressure, or shock. Children with HFMD who were admitted to the hospital for more than ten days or were admitted to the hospital due to other diseases during the recovery period were excluded from the study. The flowchart of the study is shown in Figure 1.

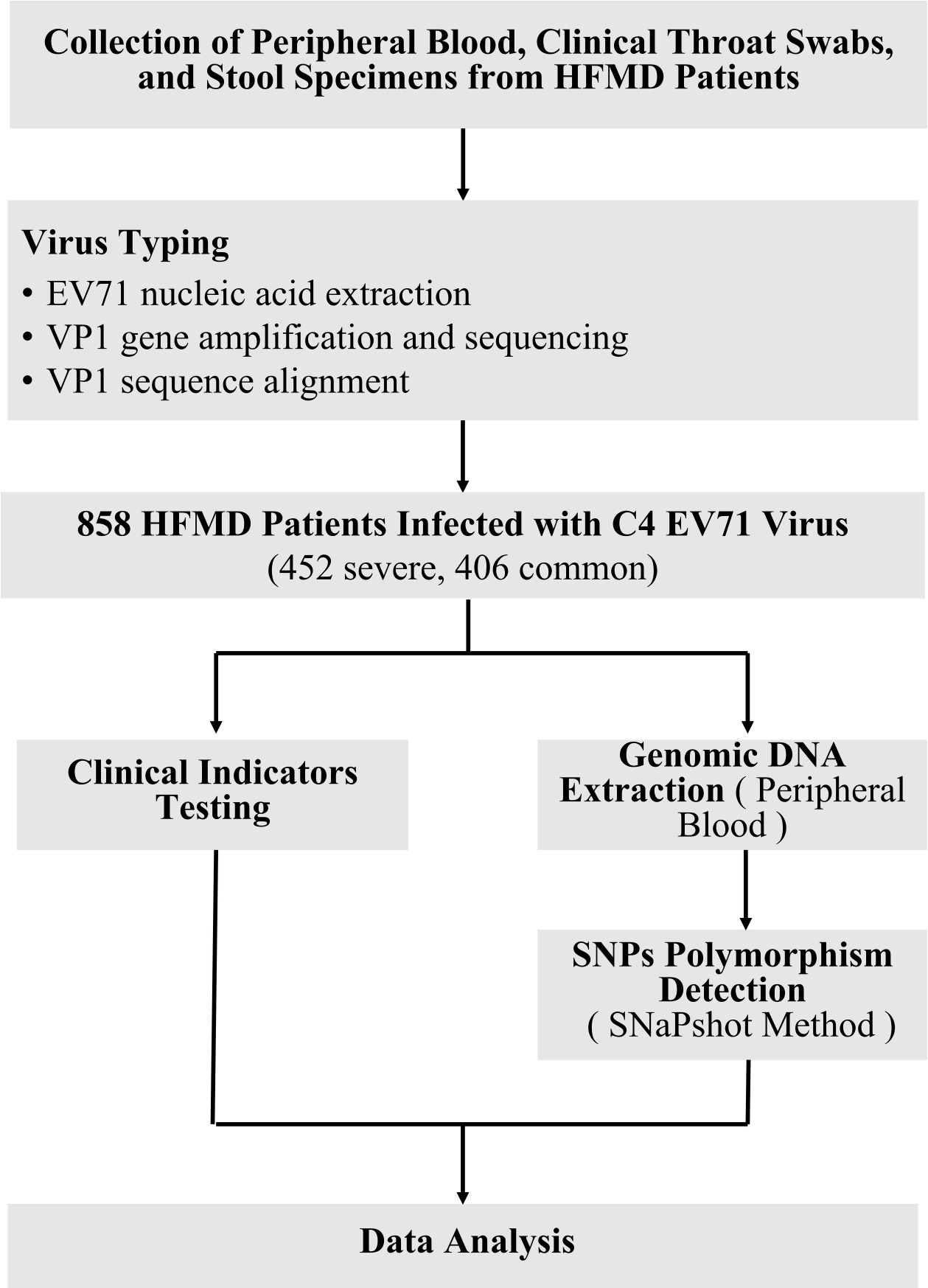

Figure 1.: The flowchart of the study. HFMD: Hand, foot, and mouth disease; EV71: Enterovirus 71; SNP: Single-nucleotide polymorphism.

Sample collection and pathogenesis testing

For clinical throat swabs collection, the patient opened the mouth, and sample collector wiped their tonsils and posterior pharyngeal wall back and forth with a disposable sterile sampling swabs three times, and then placed the swab into the sampling tube. For stool sample collection, approximately 3–5 g of patient stool was collected and placed in a sterile container. Nucleic acid was extracted from clinical throat swabs or stool samples of suspected cases using an EV71 nucleic acid detection kit (Jiangsu Mole Bioscience Co., Ltd.) according to the manufacturer’s protocol. EV71 nucleic acid positive samples were selected, PCR amplification of the VP1 gene was performed as described by Wang et al. [19]. After purification, VP1 gene amplification products were sequenced by Sanger sequencing technology using an ABI3730XL automatic DNA sequence analyzer (Applied Biosystems, USA). DNAStar MegAlign software was used to compare the homology of the sequencing results with the EV71 virus VP1 gene sequence in GenBank to confirm C4 EV71 virus infection.

Determination of clinical indicators

Venous blood was collected from infected subjects. An automatic hematology analyzer was used to test blood indicators, including hematocrit (HCT), hemoglobin (HGB), absolute value of lymphocyte (LYMPH), mean corpuscular hemoglobin (MCH), MCH concentration (MCHC), mean corpuscular volume (MCV), absolute value of monocytes (MO), absolute value of neutrophils (NEUT), platelets (PLT), red blood cells (RBC), red blood cell volume distribution width (RDW), and white blood cells (WBC).

Tag single-nucleotide polymorphisms (TagSNPs) selection and analysis

Required data were downloaded from 1000 Genomes Browser (https://www.ncbi.nlm.nih.gov/variation/tools/1000genomes/). TagSNPs were selected using HaploView4.2 software (the upstream and downstream settings range was 2K, MAF ≥ 0.05, R2 ≥ 0.8). Eight TagSNPs for the SELPLG gene and 17 TagSNPs for the SCARB2 gene were obtained (Table S1). The SNaPshot method was used to analyze the polymorphisms of the single-nucleotide polymorphism (SNP) sites. Primers used in our study are shown in Table S2.

Ethical statement

The study protocol was conducted following the Declaration of Helsinki and approved by the Medical Ethics Committee of Kunming Medical University (KMMU2021MEC055). Informed and written consent was obtained from the parents/legal guardians of all subjects involved in the study.

Statistical analysis

The Hardy–Weinberg equilibrium test and the chi-square test for the genotype frequency and allele frequency were performed using SHEsis software [20]. Genetic model analysis for all SNPs was performed using PLINK software. Logistic regression analysis was performed using SPSS23.0 for each SNPs’ genotype and allele to derive their correlation with the severity of EV71 infection. Continuous variables were represented as mean ± SD. The t-test was used for comparison between groups for measurement data, and the chi-square test was used for comparison between groups for counted data. P < 0.05 indicated statistical significance.

Results

Clinical and biochemical indicators

There was no significant difference in sex or age between the severe case group and the common case group of HFMD. In the severe group, the NEUT was higher than in the common case group, and the RBC and HGB levels were lower than those in the common case group (P < 0.05). The LYMPH and PLT were higher than their respective reference values, and the MCV and MCH were lower than their respective reference values for both groups. The other indicators were within the reference value ranges (Table 1).

Table 1: Clinical and biochemical indicators of the common case group and the severe case group
Parameters Reference values Common case group (n ═ 406) Severe case group (n ═ 452) t-test/X2 P value
Sex (M/F) / 245 / 161 276 / 176 0.046 0.830
Age (years) / 3.350 ± 1.927 3.220 ± 1.626 0.113 0.737
WBC (×10−9/L) 3.5 ∼ 9.5 8.331 ± 3.051 8.957 ± 2.733 0.935 0.333
NEUT (×10−9/L)Δ 1.8 ∼ 6.3 3.582 ± 2.074 5.030 ± 2.518 6.159 0.014
LYMPH (×10−9/L)* 1.1 ∼ 3.2 4.297 ± 1.949 3.418 ± 1.866 3.381 0.066
MO (×10−9/L) 0.1 ∼ 0.6 0.730 ± 0.514 0.611 ± 0.853 0.366 0.545
RBC (×10−12/L)Δ 3.8 ∼ 5.1 4.941 ± 0.332 4.686 ± 0.370 8.033 0.005
HGB (g/L)Δ 115 ∼ 150 131.200 ± 10.670 125.165 ± 10.929 5.392 0.020
HCT (%) 40 ∼ 50 38.855 ± 2.891 36.799 ± 4.299 3.853 0.050
MCV (fL)* 82.0 ∼ 100.0 79.640 ± 4.214 79.433 ± 6.380 0.020 0.886
MCH (pg)* 27.0 ∼ 34.0 26.730 ± 1.780 26.954 ± 2.008 0.231 0.631
MCHC (g/L) 316.0 ∼ 354.0 335.500 ± 10.995 336.500 ± 23.992 0.034 0.854
RDW (fL) 41.2 ∼ 53.6 39.155 ± 2.319 38.994 ± 2.908 0.059 0.809
PLT (×10−9/L)* 125 ∼ 350 324.550 ± 90.371 345.025 ± 86.787 1.006 0.316

*Deviation from the reference value. ΔThere was a significant difference between the common case group and the severe case group, P < 0.05. Bold values indicate statistical significance. X2: Chi-square test; WBC: White blood count; NEUT: Absolute value of neutrophils; LYMPH: Absolute value of lymphocytes; MO: Absolute value of monocytes; RBC: Red blood cells; HGB: Hemoglobin; HCT: Hematocrit; MCV: Mean corpuscular volume; MCH: Mean corpuscular hemoglobin; MCHC: Mean corpuscular hemoglobin concentration; RDW: Red blood cell volume distribution width; PLT: Platelets.

Allele frequency in the common case group and the severe case group

Among total 25 TagSNPs, the allele frequencies of rs74719289 A (odds ratio [OR] 0.330; 95% confidence interval [CI] 0.115–0.947; P ═ 0.031), rs3733255 T (OR 0.336; 95% CI 0.118–0.958; P ═ 0.033), rs17001551 A (OR 0.378; 95% CI 0.145–0.984; P ═ 0.039), and rs894250 C (OR 0.378; 95% CI 0.145–0.984; P ═ 0.039) in the severe case group were lower than those of the common case group for the SCARB2 gene (P < 0.05). No significant differences in allele frequency for the remaining SNPs were detected between the common case group and the severe case group (Table 2).

Table 2: Distributions of allele frequencies in the common case group and the severe case group
Gene SNPs Allele Minor allele Minor allele common cases (n, %) Minor allele severe cases (n, %) OR (95% CI) X2 P value
SCARB2 rs17001551 A/G A 122 15.02 56 6.19 0.378 (0.145–0.984) 4.251 0.039
SCARB2 rs35583533 C/T C 162 19.95 204 22.68 1.178 (0.524–2.646) 0.158 0.691
SCARB2 rs3733256 C/G C 108 13.15 50 5.45 0.384 (0.136–1.084) 3.493 0.062
SCARB2 rs6825004 G/C G 204 25.00 283 31.22 1.358 (0.644–2.864) 0.649 0.421
SCARB2 rs8475 A/T A 325 40.15 357 39.60 0.977 (0.502–1.898) 0.005 0.944
SCARB2 rs894251 A/G A 406 50.12 400 44.25 0.794 (0.414–1.521) 0.486 0.486
SCARB2 rs74719289 A/G A 102 12.56 41 4.46 0.330 (0.115–0.947) 4.646 0.031
SCARB2 rs76229059 G/A G 235 28.91 300 33.15 1.227 (0.590–2.552) 0.302 0.583
SCARB2 rs1051326 C/G C 345 42.49 358 39.64 0.885 (0.458–1.710) 0.133 0.716
SCARB2 rs3796498 T/C T 162 19.95 135 14.93 0.706 (0.310–1.606) 0.696 0.404
SCARB2 rs9991821 A/G A 122 15.02 167 18.44 1.267 (0.513–3.131) 0.264 0.607
SCARB2 rs17001640 G/A G 325 40.15 392 43.36 1.143 (0.589–2.218) 0.157 0.692
SCARB2 rs6824953 C/G C 203 25.00 284 31.36 1.366 (0.647–2.882) 0.673 0.412
SCARB2 rs894250 C/A C 122 15.02 56 6.19 0.378 (0.145–0.984) 4.251 0.039
SCARB2 rs3733255 T/C T 107 13.15 43 4.79 0.336 (0.118–0.958) 4.54 0.033
SCARB2 rs11547135 C/T C 385 52.61 396 43.69 0.693 (0.356–1.350) 1.173 0.279
SCARB2 rs1465922 A/G A 235 28.91 331 36.62 1.396 (0.673–2.897) 0.807 0.369
SELPLG rs2228315 T/C T 284 35.10 287 31.75 0.854 (0.431–1.691) 0.205 0.65
SELPLG rs3782522 T/C T 406 50.00 364 38.27 0.626 (0.326–1.201) 2.012 0.156
SELPLG rs765267 G/A G 204 25.00 225 24.89 0.987 (0.466–2.091) 0.001 0.972
SELPLG rs8179133 A/G A 203 24.88 230 25.22 1.013 (0.479–2.146) 0.001 0.972
SELPLG rs4964269 A/G A 386 47.54 405 44.69 0.895 (0.467–1.717) 0.111 0.739
SELPLG rs7138370 G/C G 204 24.88 191 23.28 0.921 (0.434–1.954) 0.046 0.83
SELPLG rs1981758 T/C T 223 27.46 240 26.55 0.963 (0.465–1.995) 0.01 0.919
SELPLG rs8179141 T/C T 142 17.49 125 13.75 0.744 (0.314–1.767) 0.451 0.502

Bold values indicate statistical significance. SNPs: Single-nucleotide polymorphisms; OR: Odds ratio; CI: Confidence interval; X2: Chi-square test.

Genotype frequency in the common case group and the severe case group and genetic model analysis

For rs17001551, the alleles are A and G. The A allele is the minor allele. The genotype frequencies of the GG, GA, and AA in the severe case group were 87.56%, 12.44%, and 0.00%, respectively, while they were 70.00%, 30.00%, and 0.00% (P ═ 0.031) in the common case group, respectively (Table 3). The A allele has a lower frequency in the population and is considered as a mutant gene. Patients carrying this mutation experienced milder symptoms in a dominant model (AA + GA vs GG, OR 0.331; 95% CI 0.117–0.942; P ═ 0.038). This difference was not statistically significant in a recessive model (AA vs GA + GG). Therefore, we suggest that if the A allele is associated with the severity of EV71 infection, it might play a role in a dominant model (Table 4).

Table 3: Distributions of genotype frequencies in the common case group and the severe case group
Gene SNPs Common case group Severe case group P value
MM (n, %) MN (n, %) NN (n, %) Total MM (n, %) MN (n, %) NN (n, %) Total
SCARB2 rs17001551 284 70.00 122 30.00 0 0.00 406 396 87.56 56 12.44 0 0.00 452 0.031
SCARB2 rs35583533 244 60.00 162 40.00 0 0.00 406 263 58.21 173 38.31 16 3.48 452 0.698
SCARB2 rs3733256 297 73.68 106 26.32 0 0.00 403 392 89.06 48 10.94 0 0.00 440 0.052
SCARB2 rs6825004 203 50.00 203 50.00 0 0.00 406 216 48.00 187 41.50 47 10.50 450 0.297
SCARB2 rs8475 122 30.00 244 60.00 41 10.00 406 177 39.49 188 42.05 83 18.46 447 0.287
SCARB2 rs894251 102 25.00 203 50.00 102 25.00 406 151 33.33 202 44.78 99 21.89 452 0.750
SCARB2 rs74719289 305 75.00 102 25.00 0 0.00 406 398 91.01 39 8.99 0 0.00 437 0.027
SCARB2 rs76229059 191 47.37 191 47.37 21 5.26 403 199 44.39 201 44.90 48 10.71 448 0.755
SCARB2 rs1051326 122 30.00 223 55.00 61 15.00 406 180 40.10 182 40.61 87 19.29 449 0.462
SCARB2 rs3796498 264 65.00 122 30.00 20 5.00 406 333 73.63 103 22.89 16 3.48 452 0.707
SCARB2 rs9991821 284 70.00 122 30.00 0 0.00 406 300 66.67 134 29.80 16 3.54 450 0.692
SCARB2 rs17001640 122 30.00 244 60.00 41 10.00 406 148 32.84 216 47.76 88 19.40 452 0.480
SCARB2 rs6824953 203 50.00 203 50.00 0 0.00 406 215 47.96 185 41.33 48 10.71 448 0.289
SCARB2 rs894250 284 70.00 122 30.00 0 0.00 406 398 88.06 52 11.44 2 0.50 452 0.062
SCARB2 rs3733255 297 73.68 106 26.32 0 0.00 403 406 90.36 43 9.64 0 0.00 449 0.027
SCARB2 rs11547135 85 21.05 212 52.63 106 26.32 403 178 39.30 153 33.83 121 26.87 452 0.195
SCARB2 rs1465922 170 42.11 233 57.89 0 0.00 403 202 44.78 169 37.31 81 17.91 452 0.070
SELPLG rs2228315 162 40.00 203 50.00 41 10.00 406 211 46.77 193 42.79 47 10.45 452 0.818
SELPLG rs3782522 61 15.00 284 70.00 61 15.00 406 180 39.80 198 43.78 74 16.42 452 0.058
SELPLG rs765267 203 50.00 203 50.00 0 0.00 406 252 55.72 175 38.81 25 5.47 452 0.412
SELPLG rs8179133 223 55.00 162 40.00 20 5.00 406 254 56.22 166 36.82 31 6.97 452 0.924
SELPLG rs4964269 81 20.00 264 65.00 61 15.00 406 151 33.33 198 43.78 103 22.89 452 0.191
SELPLG rs7138370 223 55.00 162 40.00 20 5.00 406 267 59.30 156 34.67 27 6.03 451 0.889
SELPLG rs1981758 203 50.00 183 45.00 20 5.00 406 250 55.22 164 36.32 38 8.46 452 0.695
SELPLG rs8179141 264 65.00 142 35.00 0 0.00 406 338 74.87 102 22.61 11 2.51 451 0.384

Bold values indicate the single nucleotide polymorphisms that differ between the two groups. SNP: Single-nucleotide polymorphisms; M: Major allele; N: Minor allele.

Table 4: Statistical analysis of dominant and recessive genetic model in the common case group and severe case group
Gene SNPs Dominant model (MN + NN vs MM) Recessive model (NN vs MM + MN)
OR (95% CI) P value OR (95% CI) P value
SCARB2 rs17001551 0.331 (0.117–0.942) 0.038 – –
SCARB2 rs35583533 0.987 (0.386–2.526) 0.979 – –
SCARB2 rs3733256 0.344 (0.113–1.051) 0.061 – –
SCARB2 rs6825004 0.865 (0.343–2.179) 0.758 – –
SCARB2 rs8475 0.532 (0.190–1.489) 0.230 1.403 (0.270–7.292) 0.688
SCARB2 rs894251 0.672 (0.219–2.057) 0.486 0.657 (0.180–2.402) 0.525
SCARB2 rs74719289 0.297 (0.096–0.916) 0.035 – –
SCARB2 rs76229059 1.011 (0.383–2.669) 0.982 2.172 (0.261–18.103) 0.473
SCARB2 rs1051326 0.552 (0.195–1.566) 0.264 0.962 (0.228–4.056) 0.958
SCARB2 rs3796498 0.673 (0.242–1.872) 0.449 0.615 (0.070–5.389) 0.661
SCARB2 rs9991821 1.043 (0.382–2.848) 0.935 – –
SCARB2 rs17001640 0.727 (0.260–2.035) 0.544 1.773 (0.341–9.217) 0.496
SCARB2 rs6824953 0.862 (0.342–2.174) 0.753 – –
SCARB2 rs894250 0.303 (0.106–0.867) 0.026 – –
SCARB2 rs3733255 0.299 (0.097–0.921) 0.035 – –
SCARB2 rs11547135 0.344 (0.103–1.148) 0.083 0.547 (0.140–2.130) 0.384
SCARB2 rs1465922 0.606 (0.232–1.584) 0.307 – –
SELPLG rs2228315 0.732 (0.276–1.940) 0.530 0.894 (0.177–4.516) 0.892
SELPLG rs3782522 0.236 (0.065–0.850) 0.027 0.413 (0.079–2.150) 0.293
SELPLG rs765267 0.696 (0.277–1.753) 0.442 – –
SELPLG rs8179133 0.900 (0.346–2.344) 0.830 1.363 (0.163–11.366) 0.775
SELPLG rs4964269 0.404 (0.126–1.295) 0.127 0.915 (0.196–4.284) 0.911
SELPLG rs7138370 0.804 (0.308–2.096) 0.655 1.119 (0.133–9.428) 0.918
SELPLG rs1981758 0.731 (0.283–1.885) 0.517 1.532 (0.184–12.735) 0.693
SELPLG rs8179141 0.561 (0.211–1.491) 0.246 – –

Bold values indicate statistical significance. SNP: Single-nucleotide polymorphisms; M: Major allele; N: Minor allele; OR: Odds ratio; CI: Confidence interval; X2: Chi-square test.

For rs74719289, the alleles are A and G. The A allele is the minor allele. The genotype frequencies of the GG, GA, and AA in the severe case group were 91.01%, 8.99%, and 0.00%, while they were 75.00%, 25.00%, and 0.00% (P ═ 0.0266) in the common case group (Table 3). The A allele has a lower frequency in the population and is considered as a mutant gene. Patients carrying this mutation experienced milder symptoms in a dominant model (AA + GA vs GG, OR 0.297; 95% CI 0.096–0.916; P ═ 0.035). This difference was not statistically significant in a recessive model (AA vs GA + GG). Therefore, we suggest that if the A allele is associated with the severity of EV71 infection, it might play a role in a dominant model (Table 4).

For rs3733255, the alleles are T and C. The T allele is the minor allele. The genotype frequencies of the CC, CT, and TT in the severe case group were 90.36%, 9.64%, and 0.00%, respectively, while they were 73.68%, 23.62%, and 0.00% (P ═ 0.0272) in the common case group, respectively (Table 3). The T allele has a lower frequency in the population and is considered as a mutant gene. Patients carrying this mutation experienced milder symptoms in a dominant model (TT + CT vs CC, OR 0.299; 95% CI 0.097–0.921; P ═ 0.035). This difference was not statistically significant in a recessive model (TT vs CT + CC). Therefore, we suggest that if the T allele is associated with the severity of EV71 infection, it might play a role in a dominant model (Table 4).

No significant differences in genotype frequency for the remaining SNPs were detected between the severe case group and the common case group (Table 3).

Discussion

Glycosylation and pH-dependent conformational changes in SCARB2 play an important role in the attachment and uncoating of EV71 [21]. EV71 infection in MAF transgenic mice expressing the human SCARB2 gene leads to ataxia, paralysis, and death in animal experiments [6]. We studied the correlation between SCARB2 gene polymorphisms and EV71 infection, and the results showed that the allele and genotype frequencies of rs74719289, rs3733255, and rs17001551 were significantly different between the common case group and the severe case group. Further analysis revealed that the frequency of MAF for these sites in the severe case group was significantly lower than in the common case group, and the corresponding ORs were all less than one. This indicates that SCARB2 plays an important role in the pathogenesis of this EV71 infection, and that these polymorphism sites may play a protective role in the development of HMFD.

Expression of the human SELPLG gene in transgenic mice can enhance virus replication and aggravate symptoms at the early stage of mouse-adapted EV71 strain infection [22]. rs2228315 is a SNP hotspot in the study of the SELPLG gene polymorphism, which is close to the binding region of PSGL-1 and P-selectin [23] and related to their interaction. Eight TagSNPs of the SELPLG gene, including rs2228315, were selected for our study. No significant differences in allele frequency and genotype frequency were found between the common case group and the severe case group. Therefore, we conclude that the SELPLG gene is not closely related to the severity of HFMD.

Several studies found that after EV71 infects the human body, it first replicates in the intestinal or respiratory mucosa and then transfers to various tissues, such as the CNS, through hematological dissemination or neural pathways [24], causing degeneration, necrosis, or apoptosis of neurons [25, 26]. When the internalized receptor complex is formed, EV71 is uncoated. SCARB2 plays an important role in the binding of EV71 to the receptor, virus internalization, and uncoating [21]. In contrast, PSGL-1 functions as an attachment receptor, that supports EV-71 binding to the cell surface but does not initiate uncoating [27], and does not directly contribute to the replication or dissemination of the virus in vivo. Therefore, we believe that the severity of EV71 infection with HFMD is more closely related to the SCARB2 gene. Notably, our research found the genetic polymorphisms in SCARB2 (rs74719289, rs3733255, and rs17001551) that were associated with the course of HFMD were all located in 3′ untranslated regions (3′UTRs) of the genes. Research shows that 3′UTRs can play an important role in the regulation of biological complexity, such as mRNA localization and mRNA stability and translation, even by establishing 3′UTR-mediated protein–protein interactions to regulate diverse protein features [28]. We hypothesize that these SNPs might regulate the expression or function of SCARB2. The SCARB2 gene mutation may reduce the expression level of SCARB2 protein or its binding efficiency to EV71, and it impairs the attachment and the intracellular uncoating of EV71, thereby reducing the severity of the disease. Therefore, we conclude that the SCARB2 gene polymorphism has a protective effect on the occurrence of the disease, and further studies are needed to clarify the mechanism.

Although there were significant differences in NEUT, RBC, and HGB between the common case group and the severe case group, these three indicators fell in the range of normal references. Therefore, we believe that although these three indicators might be related to the development of HMFD, they are not the key factors in the severity of HMFD. In routine blood tests, the LYMPH and PLT increased, and RBCs showed small cell morphology (MCV and MCH decreased). This phenomenon, combined with the clinical manifestations, might have some clinical reference significance for the diagnosis of HFMD.

Yen et al. [18] studied the SCARB2, SELPLG, and Annexin A2 gene polymorphisms in HMFD patients with EV71 infection in Taiwan and found that rs6824953 and rs11097262 of the SCARB2 gene are related to susceptibility to EV71 infection, while rs7137098 and rs8179137 of the SELPLG gene are related to the severity of HMFD. However, our study found that the severity of EV71 infection is related to rs74719289, rs3733255, and rs17001551 of the SCARB2 gene but not to the SELPLG gene. There were some key differences between Yen’s study and our study. First, there were different diagnostic criteria. In Yen’s study, the mild group experienced uncomplicated HFMD/HA, febrile illness, or mild CNS involvement with myoclonic jerk or aseptic meningitis [18]. However, in our study, the severe cases had CNS involvement, with symptoms including listlessness, drowsiness, weak sucking, hyperarousal, headache, vomiting, etc. Thus, the two studies had different groups of subjects based on different diagnostic criteria. Additionally, Yen’s mild cases group included some of our severe cases. This is the main reason for the inconsistency between the two studies. Second, we did not set up a healthy group to study the susceptibility to EV71 infection. We believe that the occurrence of HMFD is largely determined by exposure levels to pathogenic doses of EV71. Thus, environmental factors, such as the hygiene habits of children and caregivers, are directly related to the occurrence of HMFD. Therefore, it is meaningful to discuss individual susceptibility under the premise that the possibility of viral infection is equal. Third, there were differences in the genetic backgrounds of the research cases. Yen’s cases are from Taiwan, and our cases are from Yunnan Kunming. In our cases, 86.16% were of Han nationality, and 13.84% were mainly of the Yi ethnic group (http://tjj.km.gov.cn/c/2019-09-18/3012515.shtml). Therefore, our cases differ from the ethnic composition of Taiwan. The different genetic backgrounds of the study cases can lead to differences in the gene polymorphism itself, ultimately producing different results. In summary, the two studies chose to examine SCARB2 and SELPLG genes for TagSNPs and studied their correlation with EV71 infection in HMFD. However, due to differences in categorizing and different genetic backgrounds of the study cases, the study results are inconsistent. This reminds us that unified clinical diagnostic criteria are the premise for comparing the results of different studies. In addition to the SCARB2 and SELPLG genes, EV71 infection may be related to other major genes.

Conclusion

Briefly, we conclude that the rs74719289, rs3733255, and rs17001551 polymorphisms of the SCARB2 gene are related to the development of EV71 infection and that mutation of the SCARB2 gene can play a protective role by inhibiting the development of EV71 infections in HMFD. As the pathogenesis of EV71 infection of HMFD is very complicated, future studies would benefit from expanding the sample size, unifying diagnostic criteria, adding the inapparent infection group, and conducting more research to further clarify the factors influencing HMFD.

Supplemental Data

Table S1: SNPs information
SNP site Gene Allele Region Amino acid changes
rs17001551 SCARB2 A/G 3’UTR
rs35583533 SCARB2 C/T Intron
rs3733256 SCARB2 C/G 3’UTR
rs6825004 SCARB2 G/C Intron
rs8475 SCARB2 A/T 3’UTR
rs894251 SCARB2 A/G Intron
rs74719289 SCARB2 A/G 3’UTR
rs76229059 SCARB2 A/G Intron
rs1051326 SCARB2 C/G 3’UTR
rs3796498 SCARB2 T/C Intron
rs9991821 SCARB2 A/G Intron
rs17001640 SCARB2 A/G Intron
rs6824953 SCARB2 C/G Intron
rs894250 SCARB2 C/A Intron
rs3733255 SCARB2 C/T 3’UTR
rs11547135 SCARB2 C/T 5’UTR
rs1465922 SCARB2 A/G 3’UTR
rs2228315 SELPLG T/C Extron Met62Ile
rs3782522 SELPLG T/C Intron
rs765267 SELPLG A/G 3’UTR
rs8179133 SELPLG A/G Intron
rs4964269 SELPLG A/G Intron
rs7138370 SELPLG C/G Intron
rs1981758 SELPLG T/C Intron
rs8179141 SELPLG T/C Intron

The allele is described as minor allele/major allele; SNPs: Single-nucleotide polymorphisms; UTR: Untranslated regions.

Table S2: SNPs primers
Sites Forward Reverse Polymorphism Direction Product Primer of extension
rs3733255 CTTTAACCTCTGGCCAGAATG TTCTGTGTTTCAGGGAACAGC [C/T] F CT TTTTTTTTTTTGTTCCTATCACTTGCCAGCGC
rs3733256 CTTTAACCTCTGGCCAGAATG TTCTGTGTTTCAGGGAACAGC [C/G] F CG TTTTTTTTTTTTTTTTTTTTACAAGCCTGCAAGGAGGTGGAG
rs4964269 ACTTAGCGGCTGTGTAAACTC TCCATTTCCTCTGCTCATCTG [A/G] F AG TTTTTTTTTTCCAGCCGGGGGTACTTTATCTG
rs8475 GAACCTTTAGATACTCCAACT AGCCTGGCGACAGAGTGAGA [A/T] F AT TTTTTTTTTTCTAGATAATTGGGCATGTCTTA
rs74719289 TTGTCACAGGAAGTATAGGGC GGAAATCCATCTATCTACAGCC [A/G] F AG CTCTATTCAGTGAGTGACAGTGA
rs1051326 TTGTCACAGGAAGTATAGGGC GGAAATCCATCTATCTACAGCC [C/G] F CG TTTTTTTTTTCTGAGGAAGGAACTTGTAAAAA
rs17001551 GAAGACTGAGTTTTCCTGGAAG CATTCACCGAACTTTGTGCTC [A/G] F AG TTTTTTTTTTTTTTTTTTTTCTACCATTTTACCCTGGGTCCC
rs35583533 GCCATGATGATGTAGGGTATG TTGGTTTGCTAACAGGAGGAC [C/T] F CT GACTAAACATCCAGTGTGTAAC
rs894251 CTCACCTCTCATGCTACATTG ACTTTCCACTTTCGGTTGTCC [G/A] R CT AGAAATCAAAGGGCAAGAACCA
rs894250 CTCACCTCTCATGCTACATTG ACTTTCCACTTTCGGTTGTCC [C/A] R GT TTTTTTTTTTACTCAAACTAGCTCTGGCAAGA
rs6824953 TAGGTGGGTGCAAAGTAACTG TTCCCAATGTACTGGAAGCTC [C/G] F CG TTTTTTTTTTTTTTTTTTTTTAAATAGTAGACAGTCAGAGAC
rs8179141 AGGTTGCAGTGAGCTGAGATAG AATTGATTTGCCTCCCTCTCC [T/C] R AG TCTTTCTACACCCCAGTGGATT
rs3796498 ACTATGCAGTGTAAGCAGTGG GGGTCTTAGGCACTTGAAAAG [T/C] F CT ACAGATACTTTATTGGAATACA
rs17001640 CCTCAGTAGTGGCAAAATAGC TGTTCACTACACACAGCTCAG [A/G] R CT TTTTTTTTTTTGTGTACCCAAATGGAAGCTTA
rs76229059 AGATGGGAAAAGTGGGTTCAG TCTCCTGAGTTGCCTCTATTC [A/G] F AG TTTTTTTTTTTCAAGAAAAATCTCAGACTAAG
rs9991821 AGATGGGAAAAGTGGGTTCAG TCTCCTGAGTTGCCTCTATTC [A/G] F AG TTTTTTTTTTTTTTTTTTTTACAGATTTAAGATATCTTTACA
rs8179133 AGAATCACTTGAGCCTAGGAG CAAAGTGCTGGGATTACAGGG [G/A] R CT TGAAACCAACATAGGCCTGGCA
rs7138370 TATGAGCACACTCACAGCTAC CCGTGTTTCTGTGTTATTCTCC [C/G] F CG TTTTTTTTTTGTCAGGGCCGGACTTGCAGCAG
rs2228315 ATGATTTCCTGCCAGAAACGG ATCTCCATAGCTGCTGAATCC [T/C] F CT TGGTGTCAGTGCTGTTCCTCAG
rs3782522 TCTGCAGAGGCATTTAGTGAG AAACTTCCAGAAGGCAGGAAC [T/C] R AG AGTGGTTGCCAGCCACTGGGGC
rs1981758 TCCTCCACACAGCCTAGATG CCTTCCACCTCTCCTCTTCC [T/C] F CT TTTTTTTTTTGGCCCAGGCCCCATCTAGACCC
rs765267 AAGTTCAGCAAAGGAAGCCG AAACCTCAGAGAGCGGAAGG [A/G] F AG TTTTTTTTTTCCACTCTGGGCCCAGCCTAGCA
rs11547135 AAGGAAACCGAAACCGAGTC TACTCTGGTCTACAGCCTTC [T/C] R AG GGCGTGGCGCCGAAGGGTCCCG
rs1465922 CAACTGCAAGGAGGGAGGAG CGAAGGAAACCGAAACCGAG [A/G] F AG TTTTTTTTTTGCTCCGCGGCCTGGCGAGCGCG
rs6825004 TACATATTCCACAAATATTCA CTCAGTCTCAGGTATGTCCT [C/G] F CG TTTTTTTTTCCAGTACATTGGGAAGAAAGA

SNPs: Single-nucleotide polymorphisms.

Acknowledgements

The authors gratefully acknowledge all the patients who participated in this study.

References

  1. , , , (). Hand-foot-and-mouth disease: rapid evidence review. Am Fam Physician.
  2. , , , (). Hand, foot and mouth disease (HFMD): emerging epidemiology and the need for a vaccine strategy. Med Microbiol Immunol. https://doi.org/10.1007/s00430-016-0465-y
  3. , , (). Update on hand-foot-and-mouth disease. Clin Dermatol. https://doi.org/10.1016/j.clindermatol.2014.12.011
  4. , , , , , (). A large outbreak of hand, foot, and mouth disease caused by EV71 and CAV16 in Guangdong, China, 2009. Arch Virol. https://doi.org/10.1007/s00705-011-0929-8
  5. , , , (). Enterovirus 71 infection shapes host T cell receptor repertoire and presumably expands VP1-specific TCRβ CDR3 cluster. Pathogens. https://doi.org/10.3390/pathogens9020121
  6. , , , , , (). Transgenic mouse model for the study of enterovirus 71 neuropathogenesis. Proc Natl Acad Sci USA. https://doi.org/10.1073/pnas.1217563110
  7. , , , , , (). Tonsillar crypt epithelium is an important extra-central nervous system site for viral replication in EV71 encephalomyelitis. Am J Pathol. https://doi.org/10.1016/j.ajpath.2013.11.009
  8. , , (). At the acidic edge: emerging functions for lysosomal membrane proteins. Trends Cell Biol. https://doi.org/10.1016/S0962-8924(03)00005-9
  9. , , , , , (). The binding of a monoclonal antibody to the apical region of SCARB2 blocks EV71 infection. Protein Cell. https://doi.org/10.1007/s13238-017-0405-7
  10. , , , , , (). Human SCARB2-mediated entry and endocytosis of EV71. PLoS One. https://doi.org/10.1371/journal.pone.0030507
  11. , , , , , (). VP.amino acid residue 145 of enterovirus 71 is a key residue for its receptor attachment and resistance to neutralizing antibody during cynomolgus monkey infection. J Virol. https://doi.org/10.1128/JVI.00682-18
  12. , , , (). PSGL-1: a new player in the immune checkpoint landscape. Trends Immunol. https://doi.org/10.1016/j.it.2017.02.002
  13. , , , , , (). Human P-selectin glycoprotein ligand-1 is a functional receptor for enterovirus 71. Nat Med. https://doi.org/10.1038/nm.1961
  14. , , , , (). Molecular analysis of virulent determinants of enterovirus 71. PLoS One. https://doi.org/10.1371/journal.pone.0026237
  15. , , , , , (). A novel finding for enterovirus virulence from the capsid protein VP1 of EV71 circulating in mainland China. Virus Genes. https://doi.org/10.1007/s11262-014-1035-2
  16. , , , , , (). The variations of VP1 protein. might be associated with nervous system symptoms caused by enterovirus 71 infection. BMC Infect Dis. https://doi.org/10.1186/1471-2334-14-243
  17. , , , , , (). Genetic characterization of enterovirus 71 isolated from patients with severe disease by comparative analysis of complete genomes. J Med Virol. https://doi.org/10.1002/jmv.23287
  18. , , , , , (). Polymorphisms in enterovirus 71 receptors associated with susceptibility and clinical severity. PLoS One. https://doi.org/10.1371/journal.pone.0206769
  19. , , , , , (). Virological investigation of genetic. variation of enterovirus type 71 in hand, foot and mouth disease. Exp Ther Med. https://doi.org/10.3892/etm.2020.8728
  20. , (). SHEsis, a powerful software platform for analyses of linkage disequilibrium, haplotype construction, and genetic association at polymorphism loci. Cell Res. https://doi.org/10.1038/sj.cr.7290272
  21. , , , , , (). Molecular mechanism of SCARB2-mediated attachment and uncoating of EV71. Protein Cell. https://doi.org/10.1007/s13238-014-0087-3
  22. , , , , , (). Transgenic expression of human P-selectin glycoprotein ligand-1 is not sufficient for enterovirus 71 infection in mice. Arch Virol. https://doi.org/10.1007/s00705-011-1198-2
  23. , , , , , (). Polymorphisms in the P-selectin (CD62P) and P-selectin glycoprotein ligand-1 (PSGL-1) genes and coronary heart disease. Clin Chem Lab Med. https://doi.org/10.1515/CCLM.2004.202
  24. , , , , , (). Pyramidal and extrapyramidal involvement in experimental infection of cynomolgus monkeys with enterovirus 71. J Med Virol. https://doi.org/10.1002/jmv.2209
  25. , , , , , (). Pathologic characterization of a murine model of human enterovirus 71 encephalomyelitis. J Neuropathol Exp Neurol. https://doi.org/10.1097/NEN.0b013e31817713e7
  26. , , , , , (). Differential localization of neurons susceptible to enterovirus 71 and poliovirus type 1 in the central nervous system of cynomolgus monkeys after intravenous inoculation. J Gen Virol. https://doi.org/10.1099/vir.0.79883-0
  27. , , , , , (). Scavenger receptor B2 is a cellular receptor for enterovirus 71. Nat Med. https://doi.org/10.1038/nm.1992
  28. (). What are 3’ UTRs doing?. Cold Spring Harb Perspect Biol. https://doi.org/10.1101/cshperspect.a034728

Conflicts of interest: Authors declare no conflicts of interest.

Funding: This work was supported by the Joint Special Funds for the Department of Science and Technology of Yunnan Province–Kunming Medical University (no. 2019FE001(-186), no. 2014FZ004, and no. 202201AY070001-186).

Data availability: The data that support the findings of this study are available on request from the corresponding author
