The effects of Crataegus aronia var. dentata Browicz extract on biochemical indices and apoptosis in partially hepatectomized liver in rats


  • Nazan Keskin Department of Histology and Embryology, Faculty of Medicine, University of Pamukkale
  • Ramazan Mammadov Department of Biology, Faculty of Science and Arts, University of Pamukkale
  • Pinar Ili Department of Biology, Faculty of Science and Arts, University of Pamukkale



Crataegus aronia var. dentata Browicz, liver, hepatectomy, apoptosis


Crataegus species have been widely used in herbal medicine, especially for the hearth diseases. In the present study, the effect of Crataegus aronia var. dentata Browicz extract on partially hepatectomized rats was investigated with biochemical and TUNEL apoptosis assays. The extracts of the plant at the concentrations of 0.5 and 1 ml/100 g body weight/day were administered orally to the two experimental groups including partially hepatectomized rats for 42 days. At the end of the experimental period, animals were sacrificed, blood was collected for the assessment of serum levels of alanine aminotransferase (ALT), aspartate aminotransferase (AST) and gamma-glutamyltransferase (GGT), and the liver tissue was used for TUNEL assay.

In biochemical assay, it was found a significant decrease in the levels of serum ALT and AST in the experimental groups. On the other hand, the plant extract did not cause any significant changes in the level of GGT in these groups. In apoptosis assay, TUNEL positive hepatocytes could not be detected in both experimental groups.

The present findings can suggest that Crataegus aronia var. dentata Browicz extract can decrease the levels of serum ALT and AST and play a role in apoptosis of hepatocytes in the liver of partially hepatectomized rats. However, further studies are required to confirm the effects of the plant extract on hepatoprotection and apoptosis in the regenerating liver after partial hepatectomy in animal models.



Download data is not yet available.
The effects of Crataegus aronia var. dentata Browicz extract on biochemical indices and apoptosis in partially hepatectomized liver in rats


Additional Files



How to Cite

Keskin N, Mammadov R, Ili P. The effects of Crataegus aronia var. dentata Browicz extract on biochemical indices and apoptosis in partially hepatectomized liver in rats. Biomol Biomed [Internet]. 2012Aug.20 [cited 2023Dec.5];12(3):177-81. Available from:





Liver can rapidly regenerate itself after acute liver injury, chronic hepatic diseases, liver transplantation and partial hepatectomy. Hepatectomy, characterized by increased apoptosis, induces oxidative injury in hepatocytes. Apoptosis (programmed cell death) is an important process during normal development and regeneration of the liver. Due to the significant roles in development, regeneration and tissue homeostasis, it plays a critical role in the balance between regeneration and cell death. Recently, many researches have received a great deal of attention about evaluating apoptotic cell death and the corresponding intracellular signaling pathways [1, 2, 3, 4, 5]. Besides, the importance of cell apoptosis in normal liver development, regeneration and also in hepatopathology is exclusively investigated [6, 7, 8, 9, 10, 11, 12, 13].

Apoptosis is morphologically characterized by some cellular changes including DNA fragmentation and the appearance of cytoplasmic apoptotic bodies. As an important method for the demonstration of apoptotic cells, the TUNEL (deoxynucleotdyltransferase-mediated dUDP nick end labeling) method is based on the specific detection of DNA fragmentation in the nuclei of apoptotic cells [14]. In the past decade, there has been a great deal of interest in the use of medicinal plants for the treatment of diseases. Many researches have focused on the therapeutic properties of medicinal plants such as hepatoprotective, antioxidative, antimicrobial and gastric effects [7, 15, 16, 17, 18, 19, 20, 21]. Furthermore, many scientific studies have been extensively carried out by using medicinal plants in liver damages [15, 22, 23, 24, 25, 26]. Crataegus species, also known as Hawthorn, are medicinal plants, which have flavonoids, triterpene acids, proanthocy-anidins, and organic acids as main components. Several studies demonstrated the cardioprotective effect of Crataegus spp [27, 28, 29, 30, 31]. Additionally, some studies have reported on different effectiveness of Crataegus spp such as antioxidant, antiinflammatory and anticarcinogenic effects [32, 33, 34, 35].

The aim of the present study was to investigate the hepatoprotective and apoptotic effects of C. aronia var. dentata Browicz extracts in the liver of partially hepatectomized rats using biochemical and TUNEL methods.


Preparation of plant extract

C. aronia var. dentata Browicz grows along forest edges in Güzelpinar village, Denizli/Turkey. The flowers of the plants were collected and dried at shady places. Dried flowers were pulverized and put in the flask with 70% ethyl alcohol to let them dissolve until the concentration at 10%. The flask mouth was closed with a rubber stopper to protect the extract from contacting with air. The flask was covered with aluminum foil to protect the extract from light. Then, it was placed in the water bath at 55°C for six hours. The extract filtered and remaining sediment was dissolved with ethyl alcohol 70% and placed in the water bath at 55°C for another six hours. The extract was refiltered and the sum of the alcohol was evaporated using a rotary evaporator (Laborata 4010; Heidolph Instruments GmbH & Co. KG, Germany). Residual part of the extract was dissolved with ultrapure water and the water in the extract was lyophilized. Two different concentrations of the extract were prepared: 0.5% and 1%.

Treatment of animals

Male albino rats, weighing approximately 150-200 g, were obtained from the Pamukkale University, Faculty of Medicine, Experimental Research Center, Denizli, Turkey. The animals (Ethical approval was obtained from the Pamukkale University Animal Ethics Committee) were allocated into three groups with five rats in each group. Before the experimental period, 50% partial hepatectomy was performed under anaesthesia by removing the left lateral lobe from all the groups.

  • Group I: Control animals received normal rat diet and water, ad libitum.

  • Group II: The plant extract at concentration of 0.5 was given orally for 6 weeks.

  • Group III: The plant extract at concentration of 1 was given orally for 6 weeks.

After the experimental period, the animals were sacrificed under anesthesia, and blood samples were collected for the biochemical assays. For apoptosis assay, the livers were excised immediately from the animals, sliced thinly and embedded within optimal cutting temperature (OCT) compound. They were snap frozen in liquid nitrogen and stored at -86 °C for cryostat technique.

Biochemical assays

Blood samples were taken by cardiac venipuncture on the 2nd, 4th and 6th weeks after the initial treatment. Then, they were centrifuged at 1000 rpm for 10 minutes to collect serum and were stored at -20°C. Aspartate aminotransferase (AST), alanine aminotransferase (ALT) and gamma-glutamyltransferase (GGT) were measured for the determination of liver function.

Apoptosis assay

In order to detect the apoptotic cells, TUNEL assay on frozen tissue sections (6 μm) were performed using In Situ Cell Death Detection Kit (POD, ROCHE, cat: 11684817910). Controls of TUNEL: TUNEL controls were performed by incubating slides with 100 μl label solution.


Olympus BX50 light microscope and Olympus DP2-BSW microscope digital camera system were used for photography.

Statistical analysis

The biochemical results were evaluated using Kruskal-Wallis test in SPSS 15.0 program. The level of significance was set at p<0.05.


Biochemical findings

Tables 1, 2, and 3 give the mean serum AST, ALT and GGT levels for 2, 4, and 6 weeks in all groups. There was a significant difference in serum AST and ALT levels of the experimental groups when compared to controls (p<0.05). C. aronia var. dentata Browicz extract given to the hepatectomized rats significantly reduced the serum AST and ALT levels when compared to controls at the end of treatment. However, AST levels at the concentration of 0.5% were less than those of the levels of 1%. This effect appeared to be dose dependent. On the other hand, the extract did not affect the level of GGT.

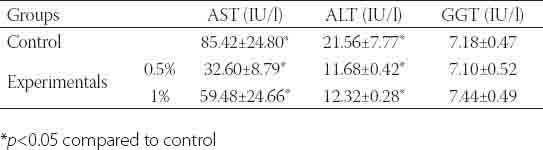

TABLE 1: Serum AST, ALT and GGT levels of 2 weeks in partially hepatectomized rats

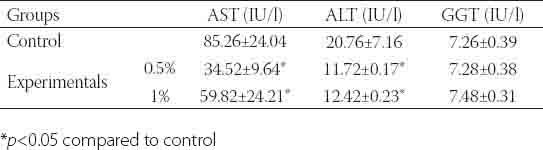

TABLE 2: Serum AST, ALT and GGT levels of 4 weeks in partially hepatectomized rats

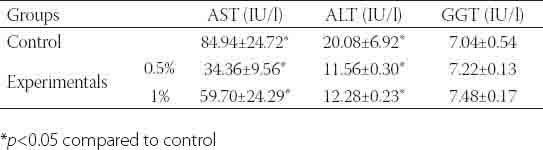

TABLE 3: Serum AST, ALT and GGT levels of 6 weeks in partially hepatectomized rats

Apoptosis assay findings

The plant extracts at concentrations of 0.5 ml and 1 ml were administered to the hepatectomized rats and the presence of apoptotic cells were investigated in liver tissue by TUNEL assay. Apoptotic cells were distinguished by distinct nuclear staining. In controls, positively stained nuclei were observed not only in hepatocytes, but also in sinusoidal cells (Figure 1b). However, TUNEL-positive hepatocytes could not be distinguished in the liver from 0.5% and 1% plant extract administered groups, whereas TUNEL-positive sinusoidal cells were observed (Figures 1c, d).

FIGURE 1: Tunel assay of hepatectomized liver in control (Group I) and experimental groups (Group II and III). a: negative control. b: TUNEL-positive hepatocytes (arrowheads), sinusoidal cells (arrows) were visualized in the Group I. c, d: It could not be distinguished apoptotic hepatocytes in the hepatectomized liver of experimental groups, but apoptotic sinusoidal cells were observed (arrows) (c: sections from the liver of Group II, d: sections from the liver of Group III), ×1000



species have received extensive attention in many scientific researches particularly on the treatment of cardiovascular diseases. In recent years, the effectiveness of the plant has been investigated on various disorders [36, 37]. Many researches have shown its antioxidant, cardioprotective, anticarcinogenic effects [27, 35, 38, 39, 40, 41, 42]. The major activity of the plant is thought to be provided by its flavonoid content. Flavonoids are biochemically active compounds with antiinflammatory and anticarcinogenic properties [43]. They have extensive biological properties that promote human health and help reduce the risk of disease [44]. As it is known, the values of ALT and AST are used as biochemical markers of liver damage [45]. From the biochemical analyses, C. aronia var. dentata Browicz extract in different concentrations administration lowered ALT and AST levels in partially hepatectomized rats. Particularly, there was a significant decrease of AST level at the concentration of 0.5% compared to that of 1%. This finding showed that the extract of C. aronia var. dentata Browicz may have protective effect against partial hepatectomy-induced liver injury. It has been concluded that fatal hepatic failure after excessive hepatectomy was characterized by increased apoptosis and diminished liver regeneration [46]. It has been reported that carvacrol obtained from Origanum onites L. (Lamiaceae) plant oil increases the liver regeneration rate following hepatectomy in rats [47]. In this study, the extracts of C. aronia var. dentata Browicz may increase the regeneration rate in hepatocytes in comparison to control group in the liver of partially hepatectomized rats. Furthermore, Swaminathan et al. [48] reported that C. oxycantha extract may reduce the oxidative stress in the reperfused myocardium, and play a significant role in the inhibition of apoptotic pathways leading to cardioprotection. Taken together, it is speculated that C. aronia var. dentata Browicz extract may play a role in the process of hepatocyte apoptosis and subsequent regeneration in hepatectomy-related injury.


In conclusion, C. aronia var. dentata Browicz extract may have potent antioxidant activity, reflected by reduced serum AST and ALT levels in partially hepatectomized rats. The mechanism of antioxidant activity may be explained by the flavanoids present in the extract. Moreover, the plant extract may enhance regenerative capacity of hepatocytes in experimental groups. Therefore, it can be suggested that C. aronia var. dentata Browicz extract may play a role in the apoptotic process of regenerating hepatocytes as well as in the antioxidant process after partial hepatectomy in rats. However, further studies are required to confirm the effects of the plant extract on hepatoprotection and the mechanisms of apoptosis and regeneration after partial hepatectomy in animal models.


The authors declare no conflict of interest.


  1. , (). Apoptotic signaling pathways: Caspases and stress-activated protein kinases. J Biochem Mol Biol.
  2. , , (). Apoptosis and necrosis in liver disease. Liver Int.
  3. , (). Role of JNK activation in apoptosis: A double-edged sword. Cell Res.
  4. (). Apoptosis: A review of programmed cell death. Toxicol Pathol.
  5. (). Apoptosis signalling: A life or death decision. Advances in Molecular Biology.
  6. , , , , (). Apoptosis in the liver and its role in hepatocarcinogenesis. Cell Biol Toxicol.
  7. , , (). Prevention of toxin-induced cytoskeletal disruption and apoptotic liver cell death by the grapefruit flavonoid naringin. Cell Death Differ.
  8. , , , (). Early ultrastructural changes of apoptosis induced by fumonisin B1 in rat liver. Yonsei Med J.
  9. , , , , , , , , , (). Role of circulating soluble CD40 as an apoptotic marker in liver disease. Apoptosis.
  10. , , , (). Anti-apoptosis effects of oxymatrine protect the liver from warm ischemia reperfusion injury in rats. World J Surg.
  11. , , , , , (). Anti-apoptotic function of gelsolin in fas antibody-induced liver failure in vivo. Am J Pathol.
  12. , , , , , (). Hepatocellular apoptosis during Candida albicans colonization: involvement of TNF-alpha and infiltrating Fas-L positive lymphocytes. Int Immunol.
  13. , , , , , , (). A role of cell apoptosis in lipopolysaccharide (LPS)-induced nonlethal liver injury in D-galactosamine (D-GalN)-sensitized rats. Dig Dis Sci.
  14. , , (). Identification of programmed cell death in situ via specific labeling of nuclear DNA fragmentation. J Cell Biol.
  15. , , , , (). The hepatoprotective action of ten herbal extracts in CCl4 intoxicated liver. Phytother Res.
  16. , , , , , (). Effects of Cimicifuga racemosa extract on liver morphology and hepatic function indices. Phytomedicine.
  17. , , , , (). Herbal recipes used for gastrointestinal disorder in Kaghan valley, NWFP, Pakistan. Pak J Weed Sci Res.
  18. , , (). Screening for antimicrobial activity of some medicinal plants species of traditional Chinese medicine. Czech J Food Sci.
  19. , (). Hepatoprotective effect of Cinnamon extracts against carbon tetrachloride induced oxidative stress and liver injury in rats. Biol Res.
  20. , , , (). Antibacterial activity of the leaves of Coccinia indica (W.A.) of India. Advan Biol Res.
  21. , , (). Effect of aqueous extract of Psidium guajava leaves on liver enzymes, histological integrity and hematological indices in rats. Gastroenterolgy Res.
  22. , , , , , (). Effect of Aloe vera leaf gel and pulp extracts on the liver in Type-II diabetic rat models. Biol Pharm Bull.
  23. , , , (). Hepatoprotective effect of Epaltes divaricata extract on carbon tetrachloride induced hepatotoxicity in mice. Indian J Med Res.
  24. , , (). Protective effect of Ziziphus mauritiana leaf extract on carbon tetrachloride-induced liver injury. Afr J Biotechnol.
  25. , , (). Histomorphological effect of the aqueous root-bark extract of Ficus sycomorus (Linn) on the liver and kidney of albino rats. International Journal of Pharmacology: IJP.
  26. , , (). The effects of Boswellia dalzielii (Burseraceae) aqueous bark extract on rat liver function. Asian J Biochem.
  27. , , , (). Protective effect of Crataegus oxyacantha against reperfusion arrhythmias after global no-flow ischemia in the rat heart. Basic Res Cardiol.
  28. , , , , (). The efficacy and safety of Crataegus extract WS® 1442 in patients with heart failure: The SPICE trial, Eur J Heart Fail.
  29. , , , , , , , (). Crataegus special extract WS 1442 induces an endothelium-dependent, NO-mediated vasorelaxation via eNOS-phosphorylation at serine 1177. Cardiovasc Drugs Ther.
  30. , , , (). Hawthorn (Crataegus monogyna Jacq.) extract exhibits atropine-sensitive activity in a cultured cardiomyocyte assay. J Nat Med.
  31. , , , (). Crataegus oxyacantha-A cardioprotective herb. J Herbal Med Toxicol.
  32. , , , , , , (). Polyphenol contents and antioxidant activities of extracts from flowers of two Crataegus azarolus L. varieties. Pak J Biol Sci.
  33. , , , , , (). The effects of a triterpene fraction isolated from Crataegus monogyna Jacq. on different acute inflammation models in rats and mice. Leucocyte migration and phospholipase A2 inhibition. J Pharm Pharmacol.
  34. , , , , , (). Antiinflammatory potential of flavonoid contents from dried fruit of Crataegus pinnatifida in vitro and in vivo. J Agric Food Chem.
  35. , , , , (). Effects of polyphenols derived from fruit of Crataegus pinnatifida on cell transformation, dermal edema and skin tumor formation by phorbol ester application. Food Chem Toxicol.
  36. , , , (). Oral administration of Crataegus flavonoids protects against ischemia/reperfusion brain damage in gerbils. J Neurochem.
  37. , , , , (). Antithrombotic effects of ethanol extract of Crataegus orientalis in the carrageenan-induced mice tail thrombosis model. Thromb Res.
  38. , , (). Liver architecture maintenance by tincture of Crataegus against isoproterenol-induced myocardially infarcted rats. J Med Food.
  39. , , , , (). Antioxidant activity of Crataegus aronia aqueous extract used in traditional Arab medicine in Israel. J Ethnopharmacol.
  40. , , (). Pretreatment with alcoholic extract of Crataegus oxycantha (AEC) activates mitochondrial protection during isoproterenol-induced myocardial infarction in rats. Mol Cell Biochem.
  41. , , (). The effect of crataegus aronica aqueous extract in rabbits fed with high cholesterol diet. Eur J Scientific Res.
  42. , , (). Antioxidant activity of hawthorn fruit in vitro. J Appl Biol Chem.
  43. , , , , , (). Suppression of inducible cyclooxygenase and inducible nitrite oxide synthase by apigenin and related flavonoids in mouse macrophages. Carcinogenesis.
  44. (). Health-promoting properties of common herbs. Am J Clin Nutr.
  45. , (). Xenobiotic-induced hepatotoxicity: Mechanisms of liver injury and methods of monitoring hepatic function. Clin Chem.
  46. , , , , , , , , , , , , , (). Mechanism of postoperative liver failure after excessive hepatectomy investigated using a cDNA microarray. J Hepatobiliary Pancreat Surg.
  47. , , , (). Effects of carvacrol upon the liver of rats under going partial hepatectomy. Phytomedicine.
  48. , , , , , , (). Cardioprotective properties of Crataegus oxycantha extract against ischemia-reperfusion injury. Phytomedicine.
